Compact 2835 SMD LED Chip 1W 3V 6V 6500K High Output Lumens

Name: Compact 2835 SMD LED Chip 1W 3V 6V 6500K High Output Lumens
Brand: HuanYu Dream
Price: 1 USD

Buy cheap Compact 2835 SMD LED Chip 1W 3V 6V 6500K High Output Lumens product

Color : 6500K

Viewing Angle(°) : 120

Customized : Availabe

Package : 2835

Current : 300mA

Voltage : 3V

CRI : Ra80

Lumen : 140-150LM

Brand Name : HuanYu Dream

Model Number : HY-2835W60L120-2S

Certification : Rohs

Place of Origin : China

MOQ : 4000pcs

Price : Negotiable

Payment Terms : T/T,Paypal,Ali Pay

Supply Ability : 500000pcs/Day

Delivery Time : 7-9 Work Days

Packaging Details : 4000pcs/Reel

Contact Now

2835 1W 3V/6V SMD LED Chip White Color High Output Lumens

2835 140-150LM 1W White Color SMD LED Chip

2835 SMD LED Chip 1W CRI80 140-150LM
Industry Standard SMD Package 2835 0.2W 0.5W 1W with various voltage choices 3V 6V 9V 18V 36V
HuanYu Dream 2835 SMD LED Chip is the price/performance leader for commercial indoor slutions compare to the cost and efficiency. They are available in CCTs from 2700K to 7000K and CRI from 80-95Ra.
Complete CCT/CRI offering for various application.
Industry standard footprint for replaceable
Reliable package design for Commercial Applications

Product Features

Compact SMD design with high brightness
Copper base with ultra stability
PCT lead frame for better heat transfer
0.2W 0.5W 1W available
Package Size:2.8(L)x3.5(W)*0.7(H)mm
Super long lifetime:>30000hrs

Product Application

High Power LED Lamp
Indoor lighting: Fluorescent lamp, tube
Commercial Illuminate : Advertising words, light box
Decorative Lighting: Light Strip
Other illuminations

Product Specifications

Electronic power	1W	1W	1W
CRI	80	80	70
Color temperature	2700-6500K	2700-6500K	2700-6500K
VF	6.0-6.2V	3.0-3.4V	3.0-3.4V
IF	150mA	300mA	300mA
LUMINUOUS EFF	140-150lm	140-150lm	155-165lm
WHOLE SIZE	2.8*3.5mm
CHIP	Sanan/Epistar
VIEW ANGLE	120°
Warranty	3 years
Leading time	7-10days

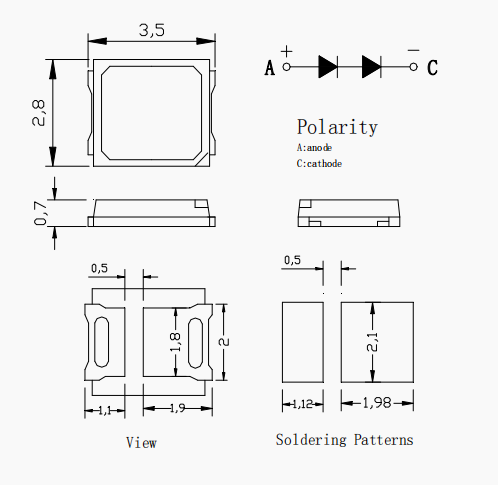

Product Dimension(Tolerance:+/-0.1mm. Unit:mm)

Package Specifications(Tolerance:+/-0.1mm. Unit:mm)
Compact 2835 SMD LED Chip 1W 3V 6V 6500K High Output Lumens

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .

Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
