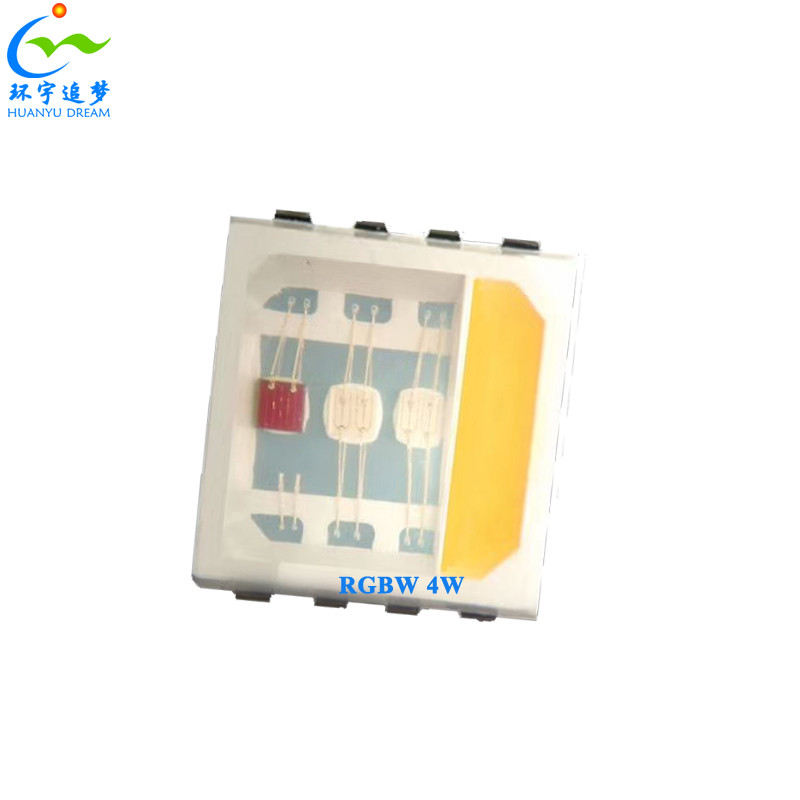

4W 5054 RGBW Smd Led Chip Features
5054 SMD LEDRGBW 4in1
1W monochrome, 4W total 4 channel separate control
Mixing light and color is good
High brightness, High light efficiency.
Small, Convenient and Flexible.
Electrical/Optical Characteristics (At TA=25°C):
| | | Parameter | | Symbol | | Conditions | Min. | | Typ. | | Max. | | | Units | | |
| | | DC Forward Voltage | VF | R | IF=300mA | 2.0 | 2.2 | 2.4 | | V | |
| | | G | IF=300mA | 2.8 | 3.0 | 3.2 | | |
| | | B | IF=300mA | 3.0 | 3.2 | 3.4 | | |
| | W | IF=300mA | 3.0 | 3.2 | 3.4 | | |
| | | Viewing Angle | | 2Θ1/2 | | IF=300*4mA | -- | | 120 | | -- | | | Deg | |
| | | | | | | | | |
| | | Main wavelength | λD | R | IF=300mA | 620 | -- | 625 | | nm | | |
| | | G | IF=300mA | 520 | -- | 525 | | | |
| | | B | IF=300mA | 455 | -- | 460 | | | |
| | CCT | W | IF=300mA | 2900 | -- | 3100 | | K | | |
| | | Luminous flux | Ф | R | IF=300mA | 25 | -- | 30 | | Lm | | |
| | | G | IF=300mA | 50 | -- | 60 | | | |
| | | B | IF=300mA | 12 | -- | 17 | | | |
| | | | W | IF=300mA | 75 | -- | 85 | | | |
Absolute Maximum Rating(At TA=25°C):
| | Parameter | Symbol | Value | | Units | |
| | Operating current range | IF | 300*4 | | mA | |
| | |
| | Junction Temperature | TJ | 125 | | °C | |
| | |
| | Operating Temperature Range | TOPR | -20°C To +85°C | |

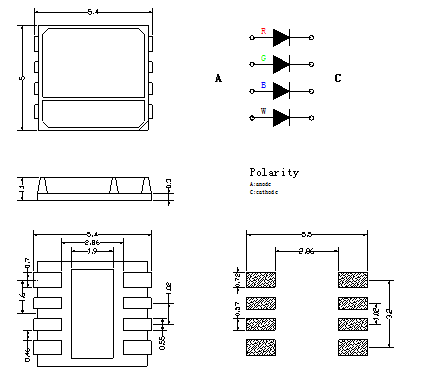

Pacakage Dimension(Units:mm)
5054 RGBW Appliation
- High Power LED Lamp
- Down light, wall lamp, garden light
- Stage lighting
- Spot lighting, ceiling light
- Decorative lighting, show lighting Landscape lighting, lighting engineering
About US
Advantages
1. Good quality guarantee, 50000 hours lifespan, 3 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-7 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED, 1-5W high power LED , 1-1500W integrated LED.
Service
· Reply your inquiry within 12 working hours
· Well-trained and experienced staffs to answer all your inquiries in fluent English.
· Strict quality control procedures before shipment.
· Customized design is available.OME and ODM are welcomed
· Delivery the goods to our customer all over the world with speed and precision.
Product Tags:
|
|
4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White Images
|
