RoHS Multi Color SMD LED 0.5W 3 In 1 3030 RGB LED Chip

Brand Name : HuanYu Dream

Model Number : HY-3030RGB-3S

Certification : RoHS

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : Ali Pay, T/T, Paypal,

Supply Ability : 1000000pcs/Day

Delivery Time : 7-15 Working Days

Packaging Details : 4000pcs/Reel

Type : 3030 RGB SMD LED Chip

Power : 0.5W

Lumen : R:8-10Lm G:15-20Lm B:4-5Lm

Voltage : R:2.0-2.4V G/B: 3.0-3.4V

Current : 60mA*3

Material : Gold Wires

Contact Now

3030 SMD RGB Chip 0.5W 3 Colors In 1 Led Chips PLCC-6 Package



3030 SMD RGB Chip 0.5W 3 colors in 1 led datasheet

  • 0.5W version and 1.5W Version 3030 RGB SMD LED Chip are available
  • Extremely wide viewing angle
  • PLCC-6 Pacakage
  • Good PCT Substruct
  • 99.99% gold wire welding

Specifications



Models

HY-3030RGBL30-3S-0.5W

HY-3030RGBL65-3S-1.5W
Electronic power 0.5W 1.5W
Wavelength Red: 620-630nm Blue: 460-470nm Green: 520-530nm Red: 620-630nm Blue: 460-470nm Green: 520-530nm
VF 3.0-3.4V 3.0-3.4V
IF 60mA*3 150mA*3
Lumen R:7-10LM    G:15-20LM     B:2-4LM R:20-25LM   G:35-45LM   B:10-14LM
Bracket types PCT EMC
WHOLE SIZE 3.0*3.0mm 3.0*3.0mm
CHIP Sanan/Epistar/Epileds Epileds/Sanan/Epistar
View angle 120° 120°
Warranty 3years 3years
Leading time 7-15Days 7-15Days





Electrical - Optical Characteristics at Ta=25℃



Type Symbol Test condition Value Unit
        Mix Typ Max
Forward Voltage VF IF=60*3mA G 2.8   3.2 V
      R 2.0   2.4
      B 2.8   3.2
Luminous Flux φ IF=60*3mA G 16 - 20 Lm
      R 7 - 10
      B 2 - 4
Dominant Wavelength λD IF=60*3mA G 520   525 nm
      R 620   630
      B 455 460 465
Reverse Current IR VR=5V         uA
Viewing Angle 2θ1/2       120   Deg
Thermal resistance Rth(j-s)           ℃/W



Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Rating Units
Power Dissipation Pd 540 mW
Forward Current IF 60*3 mA
Peak Forward Current IFP 100*3 mA
Reverse Voltage VR 5 V
Junction temperature Tj 115
Solder temperature Ts 260
Operating Temperature Topr -40 ~ + 85
Storage Temperature Tstg -40 ~ + 85
Electrostatic Discharge(HBM) ESD 2000 V

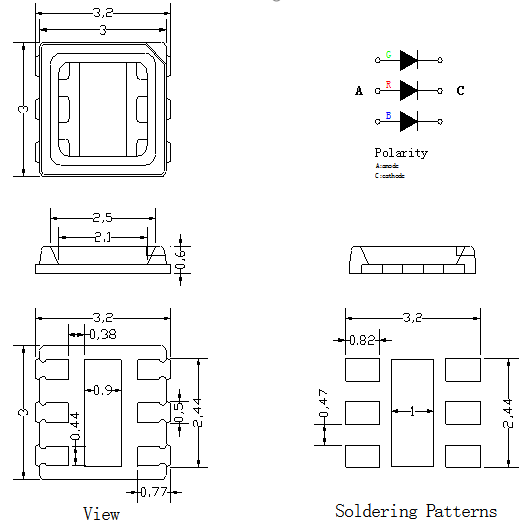

Product Dimmensions(Tolerance:+/-0.1, Unit:mm)



RoHS Multi Color SMD LED 0.5W 3 In 1 3030 RGB LED Chip





Packaging Specifications

  • The LEDs are packed in cardboard boxes after taping
  • Carrier Tape Dimensions(Uns:mm)

RoHS Multi Color SMD LED 0.5W 3 In 1 3030 RGB LED Chip



  • Reel Dimension

RoHS Multi Color SMD LED 0.5W 3 In 1 3030 RGB LED Chip
