98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting

Brand Name : HuanYu Dream

Model Number : HY01917-W30-0805B

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : negiotated

Payment Terms : T/T, Paypal,Ali Pay,, Western Union

Supply Ability : 30000 units per day

Delivery Time : 10-15 Work Days

Packaging Details : 25 pcs/Tray

Product Name : 1919 cob led chip

Size : 19*19mm( dia17mm)

CCT : 3000K/4000K/5000K/6000K

Input voltage(v) : 24V

Cri (ra>) : 98

Emitting color : White

Application : Decorative Lighting,office,workshop,LANDSCAPE,Theme Park

Warranty : 3years

Contact Now

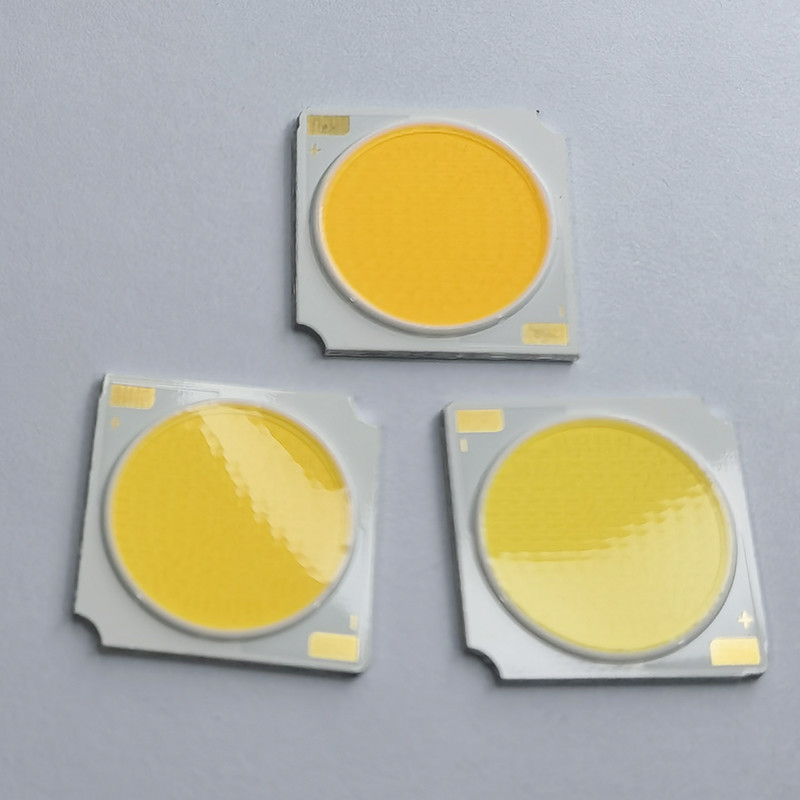

White 1919 Cob 3000k 4000k 5000K High CRI 98 1919 Cob Led Chip



High CRI 98 1919 cob led chip Specification



  • High Reliability and Stability
  • Quality light with Super high CRI, Max. Up to 98Ra.
  • Pure gold wire bonding chips in circular array
  • High quality Aluminum or Copper substrate applied
  • Strict Chip Selection to maintain color consistency (Mac Adam 3 steps, 4 steps and 5 steps or customer defined binning X Y Coordinates range)
  • Regular models in stock



98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting









COB LED 1919 (Customize CCT& CRI& Volt)

Power


25-30W (12-48W available)



Voltage


36-39V

Current

750-900mA



Series/Parallel

12S5P


Lumens



140-160lm/W( Ra>80 )


110-130lm/W (Ra>90)





CCT


6000-6500K ( customize available1800K-20000K)



CRI


Ra 97( CRI 70/ 80 /90/95 as choose)



Junction temperature


115 ℃



Solder temperature


350 ℃



Operating Temperature


-40 ~ + 85 ℃

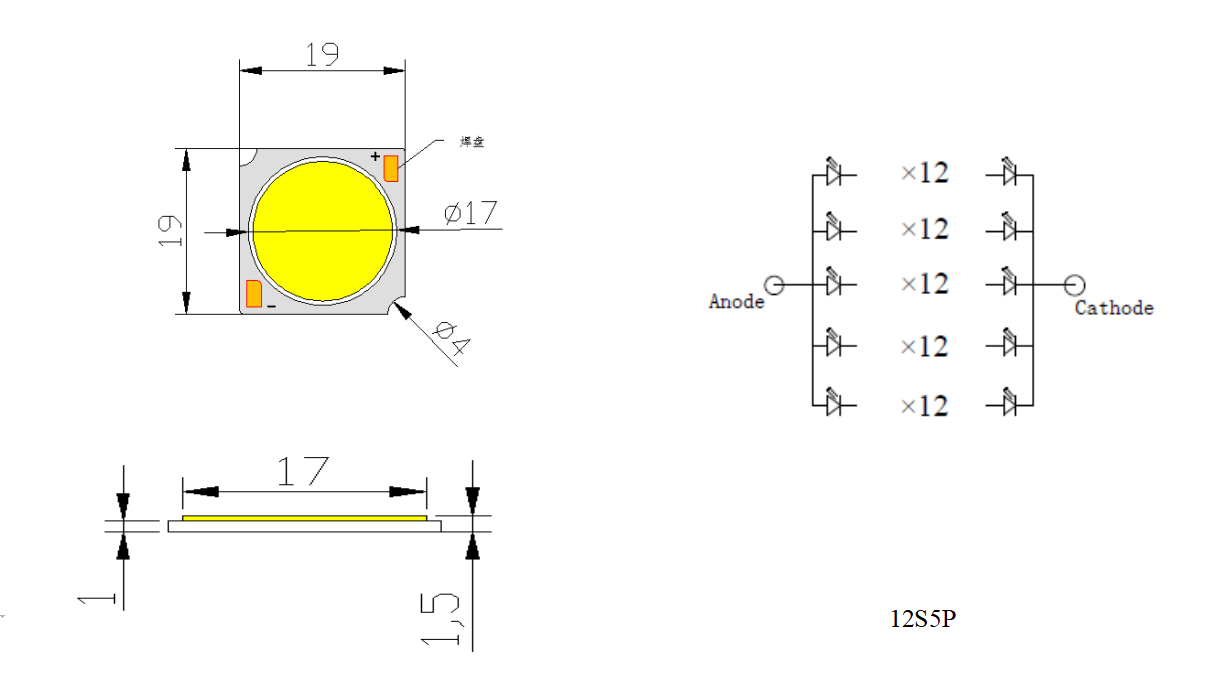

High CRI 98 1919 cob led chip Packge Dimension(Units:mm)



98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting



98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting

                                         25PCS /Tray







98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting

                                   4Tray/ESD Shieding Bag:100pcs









High CRI 98 1919 cob led chip datesheet



Electrical - Optical Characteristics at Ta=25℃



Type Symbol Test condition Value Unit
Min. Typ. Max.
Forward Voltage VF IF=750mA 34 36 38 V
2900K-3100K φ IF=750mA 2700 -- 2850 LM
3800K-4200K φ IF=750mA 2850 -- 2950 LM
5500K-6000K φ IF=750mA 2850 -- 2950 LM
Viewing Angle 2θ1/2 IF=750mA   120   Deg
Color Rendering Index CRI IF=750mA -- 97 -- --
Thermal resistance Rth(j-s) IF=750mA -- -- 0.67 ℃/W






Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Rating Units
Power Dissipation Pd 27 W
Forward Current IF 750 mA
Peak Forward Current IFP 850 mA
Junction temperature Tj 115 ℃
Solder temperature Ts 350 ℃
Operating Temperature Topr -40 ~ + 85 ℃
Storage Temperature Tstg -40 ~ + 100 ℃

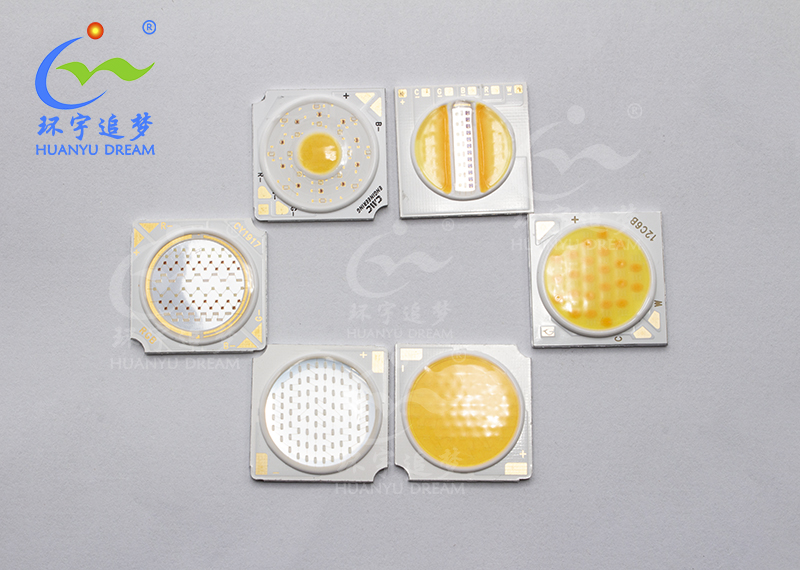

1919 COB LED Chip Series

98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting









Application

  • Flood Lighting
  • Photography Lighting
  • other lighting area

98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting











Production Process

98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting

98Ra High CRI COB LED 3000k 4000k 5000K 1919 For Decorative Lighting




FAQ

1. Are you factory or trade company?
We are a professional manufacturer of smd cob led chips.



2. Do you support OEM/ODM service?
Yes,we do support. With more than 10 years of industry experience,professional R&d team and design team



3. Can I get an sample to check quality before mass order?
Welcome to place sample order to check our quality. we can Minus sample cost after mass order



4. Any guarantee for your products?
√Strict quality control system
√Independent reliability testing laboratory
√All of our products with 3 years warranty
