Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color

Brand Name : HuanYu Dream

Model Number : HY-1917D2170

Certification : RoHS

Place of Origin : China

MOQ : 1piece

Price : Negotiated

Payment Terms : T/T, Paypal,Ali Pay

Supply Ability : 30000 units per day

Delivery Time : 10-15 Work Days

Packaging Details : 25 pcs/Tray

Product Name : 1919 COB double CCT

Series : CW: 8S4P WW:8S4P

CRI : 90

Current : 450 mA

Voltage : 22-26

CCT : 2100K-5000K/5000K-7000K

Power : 10W*2

Warranty : 3 Years

Contact Now

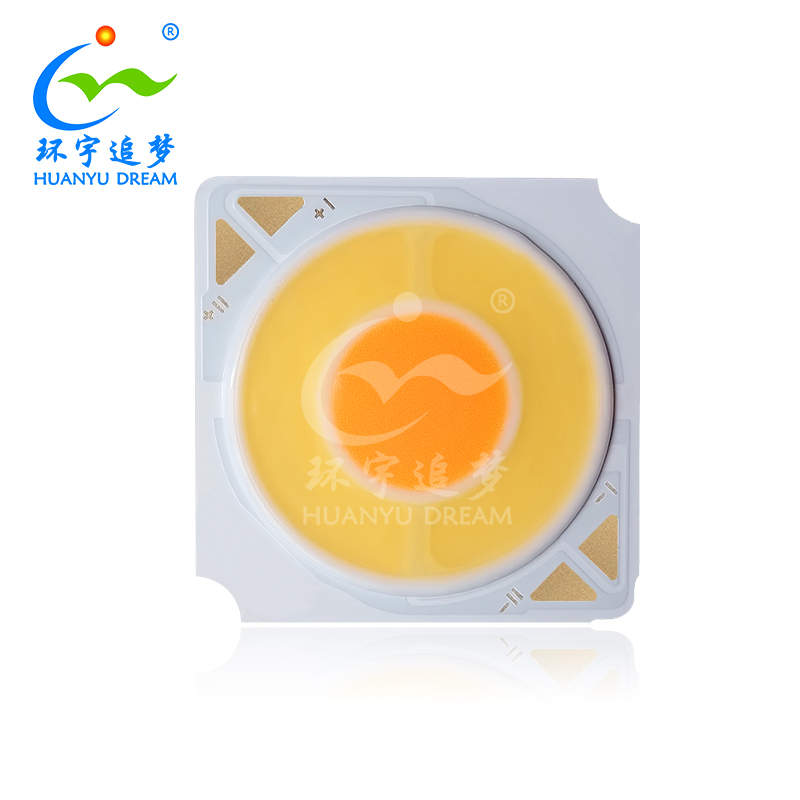

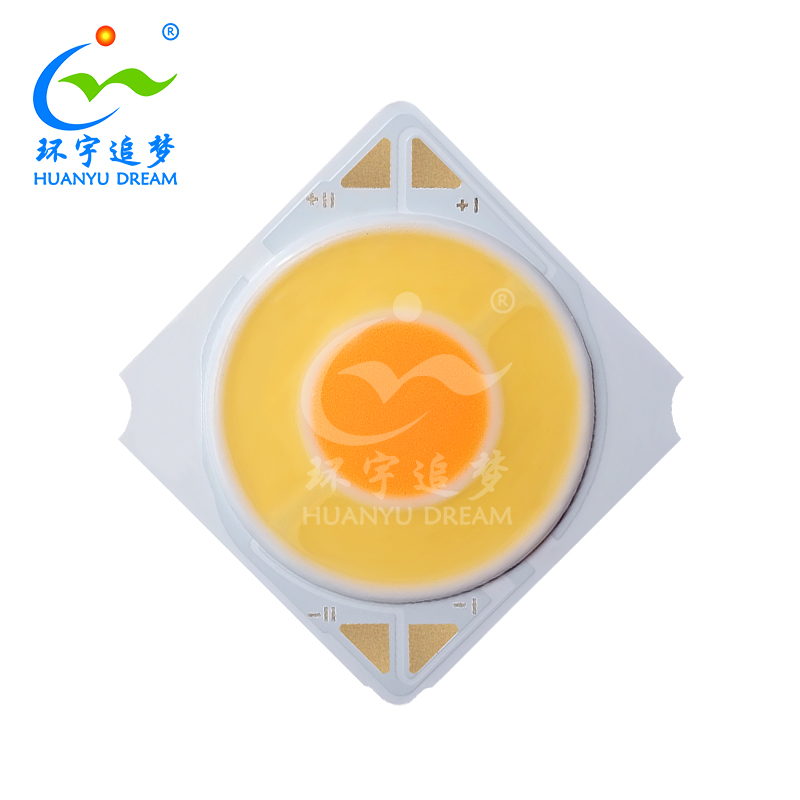

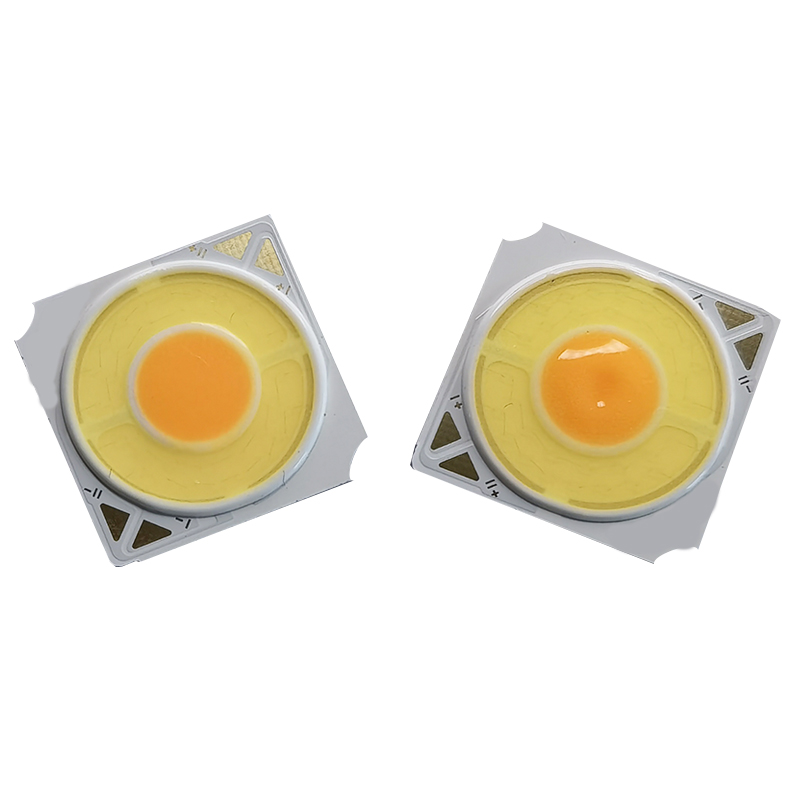

COB LED Each channel 10W double CCT 2100-7000K 1919 Bi-Color COB





1919 Bi-Color COB



* Size (mm):19.×19.0×1.5

* CRI:  90

* Wide viewing angle : 120°

* RoHS compliant

* Sulphation corrosion resistance

* Manual Soldering

* The White LED which was fabricated using a blue chip and phosphor

Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color



1919 Bi-Color COB Package Dimension



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi ColorEach Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color

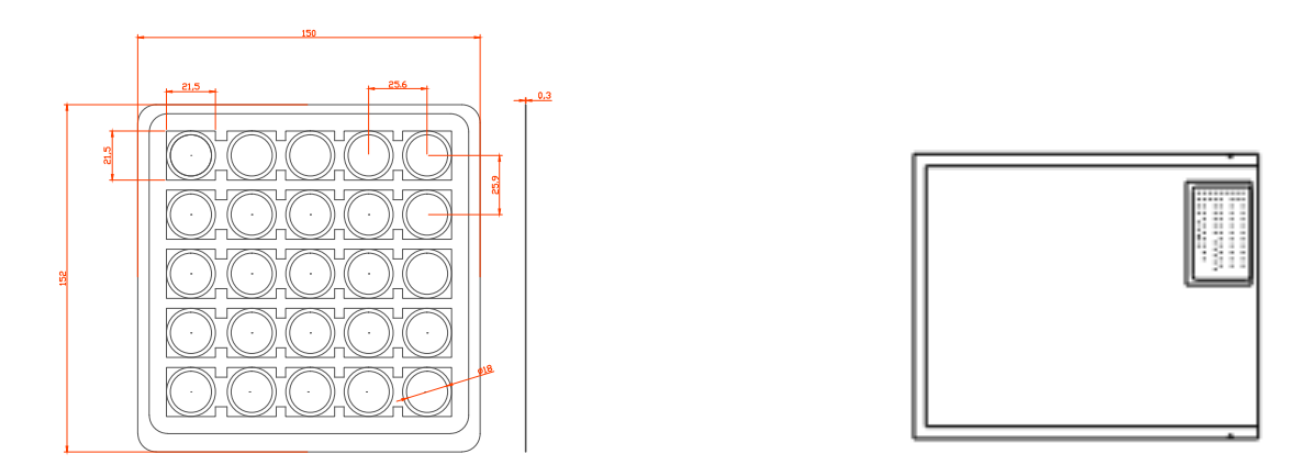

       25PCS/Tray                                           4Tray/ESD Shieding Bag:100pcs















1919 Bi-Color COB Details



Electrical - Optical Characteristics at Ta=25℃



Type Symbol Test condition Value Unit
      Min. Typ. Max.
Forward Voltage VF IF=300mA 20 22 24 V
2100K-2300K φ IF=300mA 550 -- 750 Lm
65000K-6900K φ IF=300mA 800 -- 1100 Lm
Viewing Angle 2θ1/2 IF=300mA   120   Deg
Color Rendering Index CRI IF=300mA 90 -- 83 --
Thermal resistance Rth(j-s) IF=300mA -- -- 0.67 ℃/W













Absolute Maximum Ratings at Ta=25℃

Parameter  Symbol Rating Units
Power Dissipation  Pd 8*2W W
Forward Current  IF 300 mA
Peak Forward Current  IFP 400 mA
Junction temperature  Tj 115 ℃
Solder temperature  Ts 350 ℃
Operating Temperature  Topr -40 ~ + 85 ℃
Storage Temperature  Tstg -40 ~ + 100 ℃

















Optica Characteristic curve

Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color





Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color



















1919 Bi-color COB Led Chip Applications



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color








About US



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color




FAQ

Q1: Are you a factory or a trade company?
A: We are the manufacturer specialize in smd and cob led chips since 2013.




Q2: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.



Q3: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.





Q4: Do you accept customized products?
A: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.



Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.




Q6: How to process the order?
A: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
     2. We will send you the quotation and check the stock.
     3. We will send you proformer invoice after you confirm the samples.
     4. You make the payment after checking the details.
     5. We will arrange the delivery and continue to provide you the best service.
