CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant

Product Categories
Shenzhen Huanyu Dream Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant

Brand Name : HYZM

Model Number : COB1313RGBW

Certification : RoHS

Place of Origin : China

MOQ : 1

Price : 5

Supply Ability : 10000 pcs/month

Packaging Details : 49PCS/Tray 10Tray/ESD Shieding Bag:490pcs

Delivery Time : 10-15 Working Days

Item : 1313 Rgbcw Cob Led Chip

Cri (ra>) : 90

Color temperature(cct) : Warm White,Cool White,Pure White RGB

Warranty(years) : 3

Item type : Downlights,white housing led ceiling downlight

Working temperature(℃) : -40 - 80

Contact Now

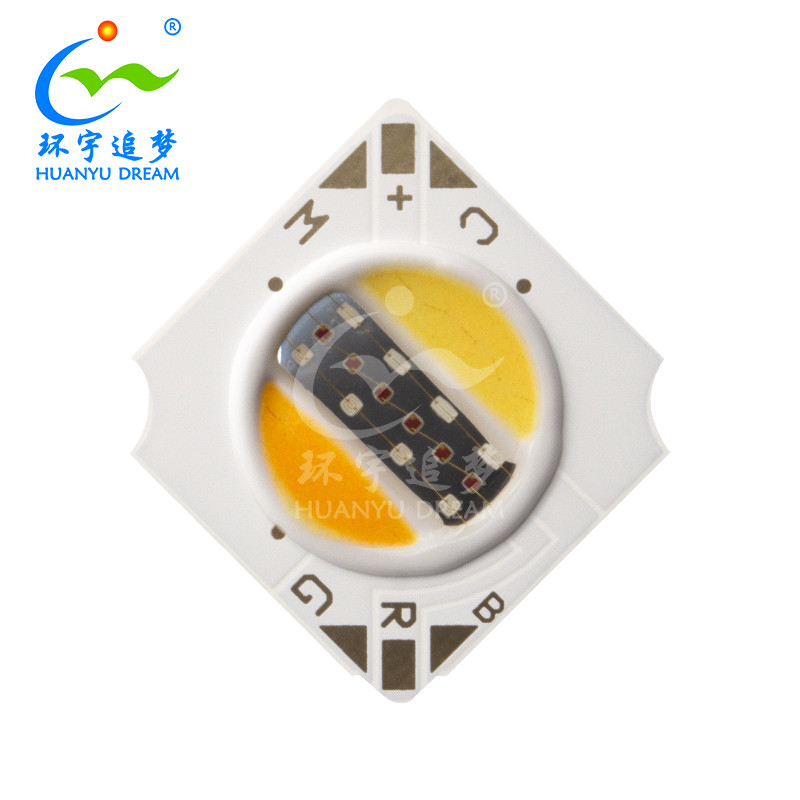

1313 Rgbcw Cob Led Chip Features





Dimension 13.5mm×13.5mm×1.5mm

Wide viewing angle : 120°

RoHS compliant

sulphation corrosion resistance

Manual Soldering



1313 Rgbcw Cob Led Chip Details



Product Name 1313 RGBCW COB
Model Number JC-1311RGBCW-2760-9-F0
Dimension 13.5mm×13.5mm×1.5mm
Color Temperature 2700K+6000K
Input Voltage(V) 12V
CCT R+G+B+CW+WW
Application Smart lighting

CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant



CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant







Package Dimension



Item Power Color Voltage Current Wd/CCT

Series/

Parallel

 Brighness CRI



1313 COB LED

RGB+WW+CW



    9W

 Red

10-12V





150mA





 620-625nm 6S1P 110-120LM /
Green 520-525nm 4S1P 120-130LM /
Blue 460-465nm 4S1P 40-50LM /
WW 2700K 4S1P 210-230LM 90
CW 6000K 4S1P 190-210LM 90










CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant







Packaging Specifications



CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant

               49PCS/Tray                                                         10Tray/ESD Shieding Bag:490pcs







Electrical - Optical Characteristics at Ta=25℃

Type

Symbol

Test condition

Value

Unit

Min.

Typ.

Max.

WaveLength(B)

λd

IF=150mA

460

--

465

nm

WaveLength(R)

λd

IF=150mA

620

--

625

nm

WaveLength(G)

λd

IF=150mA

520

--

525

nm

Correlated Colour Temperature

CCT

IF=150mA

2600

2700

2800

k

5800

6000

6200

Luminous Flux(B)

φv

IF=150mA

40



50

LM

Luminous Flux(R)

φv

IF=150mA

110



120

LM

Luminous Flux(G)

φv

IF=150mA

120



130

LM

Luminous Flux(C)

φv

IF=150mA

190



210

LM

Luminous Flux(W)

φv

F=150mA

210



230



Forward Voltage(B)

VF

IF=150mA

12



14

V

Forward Voltage(R)

VF

IF=150mA

12



14

V

Forward Voltage(G)

VF

IF=150mA

11



13

V

Forward Voltage(C)

VF

IF=150mA

12



14

V

Forward Voltage(W)

VF

IF=150mA

12



14

V

Color Rendering Index

CRI

IF=150mA

90

--

93

--

Power(B)

PD

IF=150mA



2



W

Power(R)

PD

IF=150mA



2



W

Power(G)

PD

IF=150mA



2



W

Power(C)

PD

IF=150mA



2



W

Power(W)

PD

IF=150mA



2



W

Thermal resistance

Rth(j-s)

IF=150mA

--

--

0.85

℃/W







Absolute Maximum Ratings at Ta=25℃

Parameter

Symbol

Rating

Units

Junction temperature

Tj

115

℃

Solder temperature

Ts

350

℃

Operating Temperature

Topr

-40 ~ + 85

℃

Storage Temperature

Tstg

-40 ~ + 100

℃









Applications

Smart lighting.

Stage lighting.

Spot light

Down light

General use.





CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant



CRI 90 RGBCW 5 In 1 SMD LED Chip 1313 2700K / 6000K RoHS Compliant







FAQ



1. Are you factory or trade company?
We are a professional manufacturer of smd and cob led chips. Welcome to visit the factory online or offline anytime!



2. Do you support OEM/ODM service?
Yes,we do support. With more than 10 years of industry experience R&d team and design team



3. Any guarantee for your products?
√Strict quality control system
√Independent reliability testing laboratory
√All of our products with 3 years warranty



4. Can I get an sample to check quality before mass order?
Welcome to place sample order to check our quality. we can Minus sample cost after mass order.
