8W2 Dual Color Tunable COB LED 6500K 2000K 1919 OEM ODM Service

Name: 8W2 Dual Color Tunable COB LED 6500K 2000K 1919 OEM ODM Service
Brand: HuanYu Dream
Price: 1 USD

Buy cheap 8W*2 Dual Color Tunable COB LED 6500K 2000K 19*19 OEM ODM Service product

Brand Name : HuanYu Dream

Model Number : HY-1917D2065-8S4B-8W*2

Certification : RoHS

Place of Origin : China

MOQ : 1piece

Price : Negotiated

Payment Terms : T/T, Paypal,Ali Pay

Supply Ability : 30000 units per day

Delivery Time : 10-15 Work Days

Packaging Details : 25 pcs/Tray

Models : HY-1917D2065-8S4B-8W*2

Power : 8W+8W

CCT : 2000K-2200K/6000K-6500K

CRI : 90

Current : 300 mA

Series : CW: 8S2P WW:8S2P

Voltage : 20-24V

Chip Brand : Sanan/Bridgelux

Contact Now

8W*2 Dual Colors COB LED Chip 19*19 2000K/6500K High CRI Ra>90 Factory Low Cost

1919 Bi-colors Available in two models

Part No.	Size (MM)	Light Area (mm)	Voltage (V)	Wavelength(nm) CCT(K)	Current (mA)	Luminous (LM)	CRI (Ra)
HY-1917D2065-8S4B-8W*2	19*19mm	φ17mm	20-24V	2000-2200K	300mA	550-750LM	70-98
				6000K-6500K	300mA	800-1000LM
HY-1917D2065-8S8B-15W*2	19*19mm	φ17mm	20-24V	1900-2100K	600mA	1300-1500LM	70-98
				6400-6600K	600mA	1500-1700LM

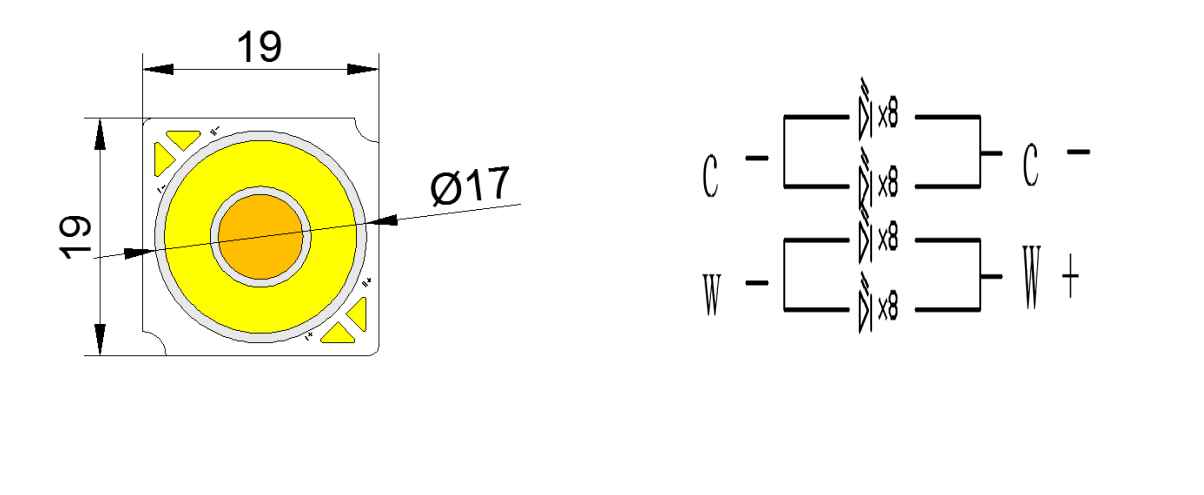

Package Dimension(8W*2)

8W*2 Dual Color Tunable COB LED 6500K 2000K 19*19 OEM ODM Service

Electrical - Optical Characteristics at Ta=25℃ (8W*2)

Type	Symbol	Test condition	Value			Unit
			Min.	Typ.	Max.
Forward Voltage	VF	IF=300mA	20	22	24	V
2100K-2300K	φ	IF=300mA	550	--	750	Lm
65000K-6900K	φ	IF=300mA	800	--	1100	Lm
Viewing Angle	2θ1/2	IF=300mA		120		Deg
Color Rendering Index	CRI	IF=300mA	90	--	83	--
Thermal resistance	Rth(j-s)	IF=300mA	--	--	0.67	℃/W

Absolute Maximum Ratings at Ta=25℃ (8W*2)

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	8*2W	W
Forward Current	IF	300	mA
Peak Forward Current	IFP	400	mA
Junction temperature	Tj	115	℃
Solder temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ + 85	℃
Storage Temperature	Tstg	-40 ~ + 100	℃

8W*2 Dual Color Tunable COB LED 6500K 2000K 19*19 OEM ODM Service

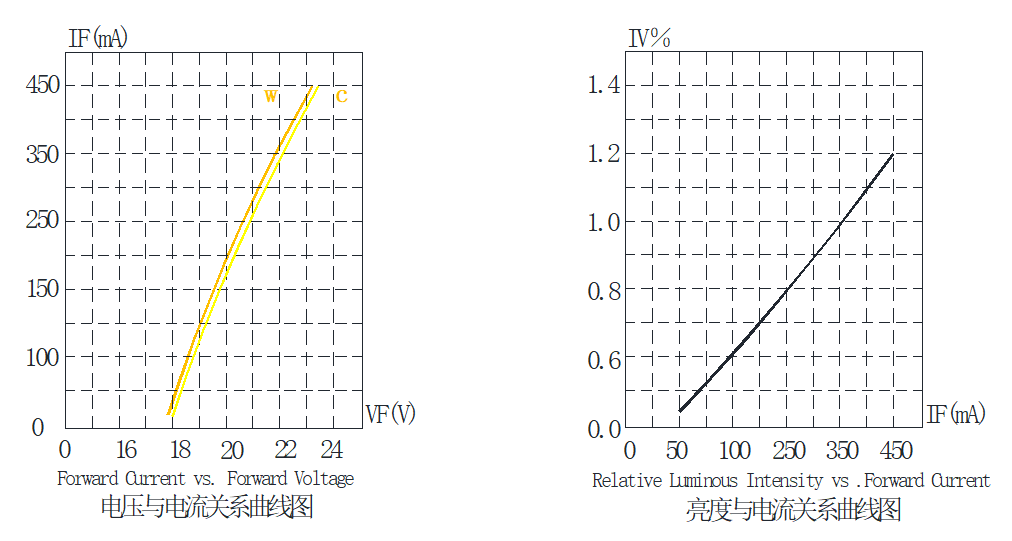

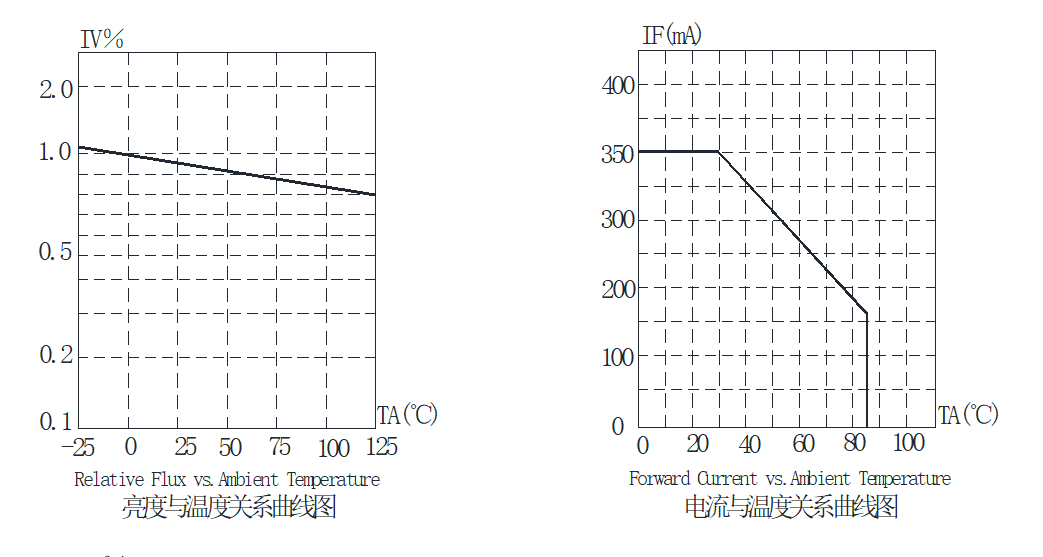

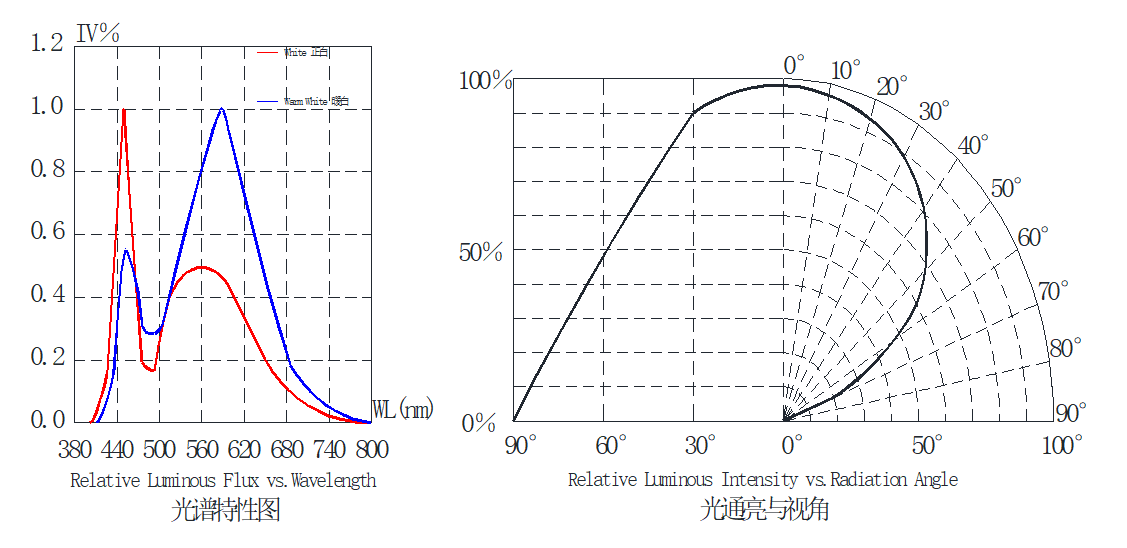

Optica Characteristic curve(8W*2)

8W*2 Dual Color Tunable COB LED 6500K 2000K 19*19 OEM ODM Service

FAQ

Q1: Are you a factory or a trade company?

A1: We are the manufacturer specialize in smd and cob led chips since 2013.

Q2: Can I get some samples for tests?
A2: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q3: What about the lead time?
A3: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.

Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.

Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.

Q6: How to process the order?
A6: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
